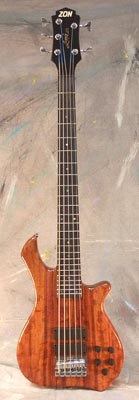

Build Your Legacy Elite Special 5

Body
Material: Two-piece select mahogany core with bubinga top
Finish: Flat satin (gloss available at extra charge)
Color: Natural

Neck
Type: Composite, set-in design
Scale length: 34"
Finish: Polyester gloss
Fingerboard: Phenowood w/side dot markers and Abalone face dots
Radius: 12"
Nut: Graphite
Frets/size: 24/medium
Width at nut: 1.875"
Width at 24th fret: 2.875"

Electronics
Type: ZP-2DM active system made for Zon by Polyfusion
Functions: Master volume, pickup blend, bass, treble and midrange controls Boost/cut ±15dB
Power requirements: Single 9-volt battery
Life expectancy: 300 hours of continuous use

Pickup
Make: Exclusively designed for Zon by Bartolini
Type: Neck: wide-aperture, passive, dual coil design Soapbar-style shell
Bridge: wide aperture, passive, dual coil design Soapbar-style shell

Hardware
Bridge: ZON machined brass
String spacIng .687"/17mm (string-to-string center)
Tuners: Gotoh GB-7
Finish: Chrome

Options
General: • Fretless -lined, blank or half lined. (no dots on board face) • Matching headstock • Piezo bridge • Black hardware • Left-handed
