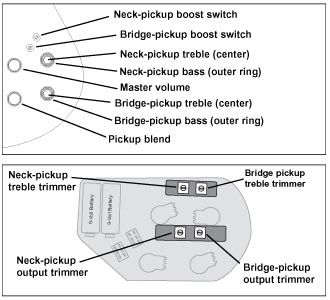

About the system
Master volume control. Controls overall volume level. Turning the control clockwise increases the volume; turning the control counterclockwise decreases the volume.
Pickup blend control. Controls relative blend of pickups. Turning the control clockwise emphasizes the bridge pickup. Turning the control counterclockwise emphasizes the neck pickup. The detent, or “click,” in the center of the control is the point where both pickups are on equally.
Bass control (neck and bridge). 15dB boost or cut of bass at a center frequency of 50 Hz. Turning the control clockwise boosts the bass.Turning the control counterclockwise cuts the bass. The detent, or “click,” in the center of the control is the “flat” position, zero boost or cut.
Treble control (neck and bridge). 15dB boost or cut of treble at a center frequency of 5kHz.Turning the control clockwise boosts the treble. Turning the control counterclockwise cuts the treble. The detent, or “click,” in the center of the control is the “flat” position, zero boost or cut.
Neck pickup boost switch. Down position: mid boost @ 450 Hz. Up position: boost mids @ 450 Hz and treble at 3kHz. Center position: flat, zero boost.
Bridge pickup boost switch. Down position: mid boost @ 450 Hz. Up position: boost mids @ 450 Hz and treble at 3kHz. Center position: flat, zero boost.
Neck pickup treble trimmer. Attenuates treble for 3-position boost switch.
Bridge pickup treble trimmer. Attenuates level of treble for 3-position boost switch.
Neck pickup output trimmer. Attenuates overall output level of neck pickup. Its factory setting is mid position.
Bridge pickup output trimmer. Attenuates overall output level of bridge pickup. Its factory setting is mid position.
Caution: Setting gain too high may cause distortion.
